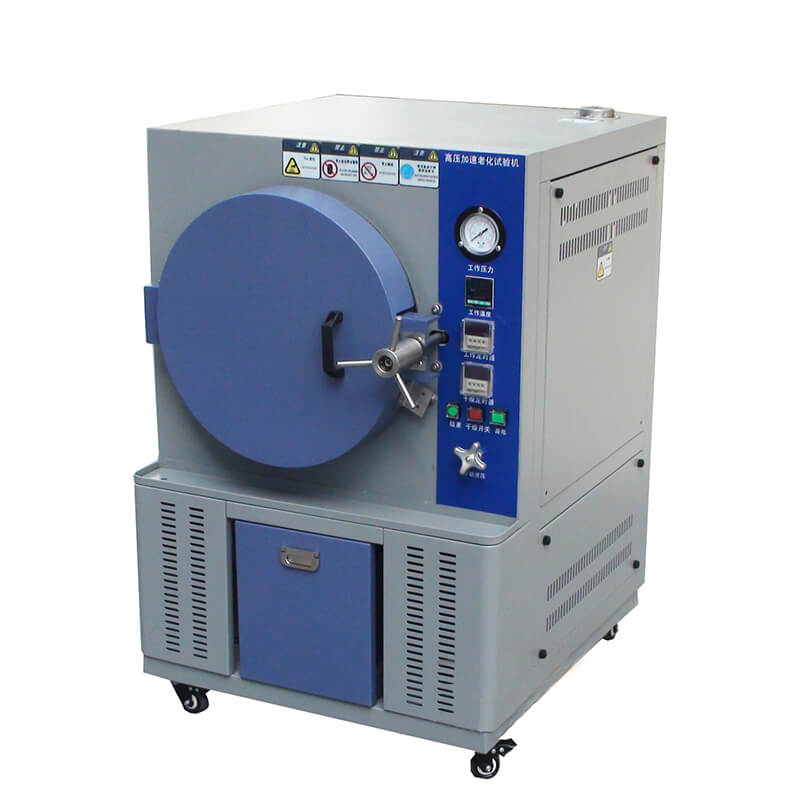

PCT- Pressure Cooker Test Chamber

LABTECH is a high-tech enterprise in China recognized by the Ministry of Science and Technology, focusing on the research and development of simulation environmental test chamber and lab instruments for more than 20 years.

PCT- Pressure Cooker Test Chamber


PCT- Pressure Cooker Test Chamber can shorten test time for whole humidity testing for IC semiconductor, connector, circuit board, magnetic materials, polymer materials, EVA, photovoltaic components and other industry-related products for accelerated aging life test.

By increasing pressure in state of temperatures above 100°C and humidity100% RH tests product reliability and failure mechanisms. Tests can be done in shortest time within days.

PCT Chambers can perform humidity test with 100% RH by pressurizing with water vapor.

Product Model: RK-PCT Series
Design Standard: IEC 60068-2-66, JESD 22-A102-C, JESD22-A110-B, JESD22-A118
GET A QUOTE Watch Video

Application:

PCT- Pressure Cooker Test Chamber can shorten test time for whole humidity testing for IC packing.



By increasing pressure in state of temperatures above 100°C and humidity 100% RH tests product reliability and failure mechanisms. Tests can be done in shortest time within days. PCT Chambers can perform humidity test with 100% RH by pressurizing with water vapor.



Pressure Cooker Tester  can be widely used to test IC semiconductor, connector, circuit board, magnetic materials, polymer materials, EVA, photovoltaic components and other industry-related products for accelerated aging life test.



Specification:

Material

Internal: SUS 304

External: Cold-rolled steel plate baking vanish

Inner Volume

Φ 300 x 340mm;  Φ 400 x 550mm (can be Customized)

Temperature range

A: 100~132℃(in state of saturation vapor )

B: 100~143℃(in state of saturation vapor )

Pressure range

A: 0.2~2kg/cm2 (0.05~0.196MPa)

B: 0.2~3kg/cm2 (0.05~0.294MPa)

Pressurization time

A: Approx. 45min

B: Approx. 50min

Temp. uniformity

≤±0.5℃

Temp. fluctuation

≤±0.5℃

Humidity range

100% R.H (in state of saturation vapor)

Controller

Button type/Touch Screen (optional)

Bias terminals

Optional

Test standard

JESD 22-A102-C



 Advantages and Features of Labtech PCT Pressure Cooker Test Chamber:



1. Highly safe and reliable design

Liner with circular arc design can avoid dew during test, which meets requirement of international standards.



2. Automatic water supply system

Test can be completed without interruption by automatic indution filling water as full water can be added before starting the test.

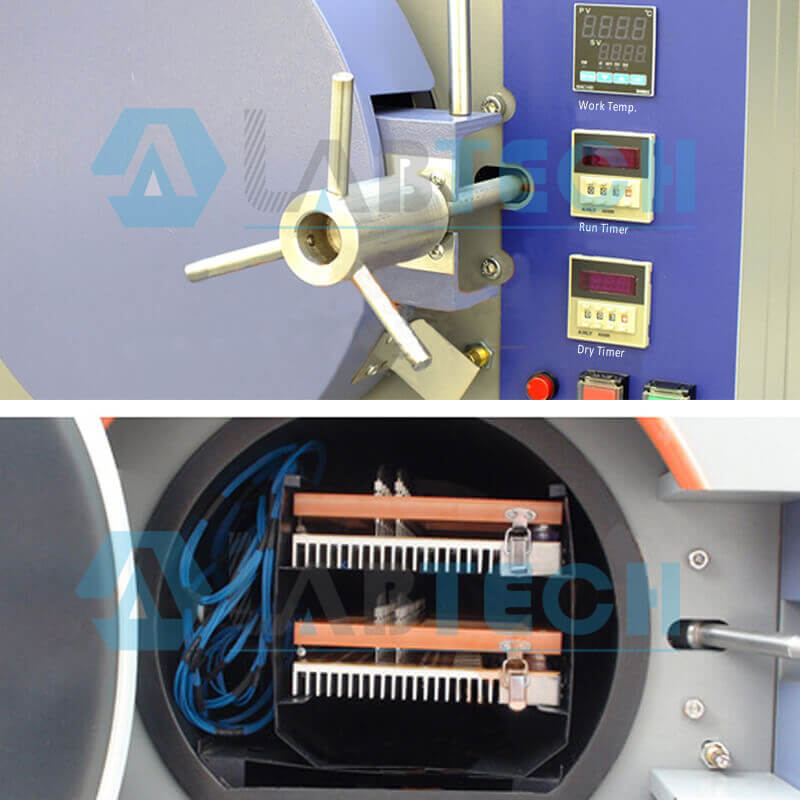

3. Cable port on side of chamber for tested sample inner data connecting and external power connecting



4. LED can dual show high precision since the thermostat, error of plus or minus 0.1 ℃

After the temperature reaches the set value, the test time of the product is calculated, and the test process automatically runs until the end of completion, and then the drying function is started to truly restore the final state of the product.
