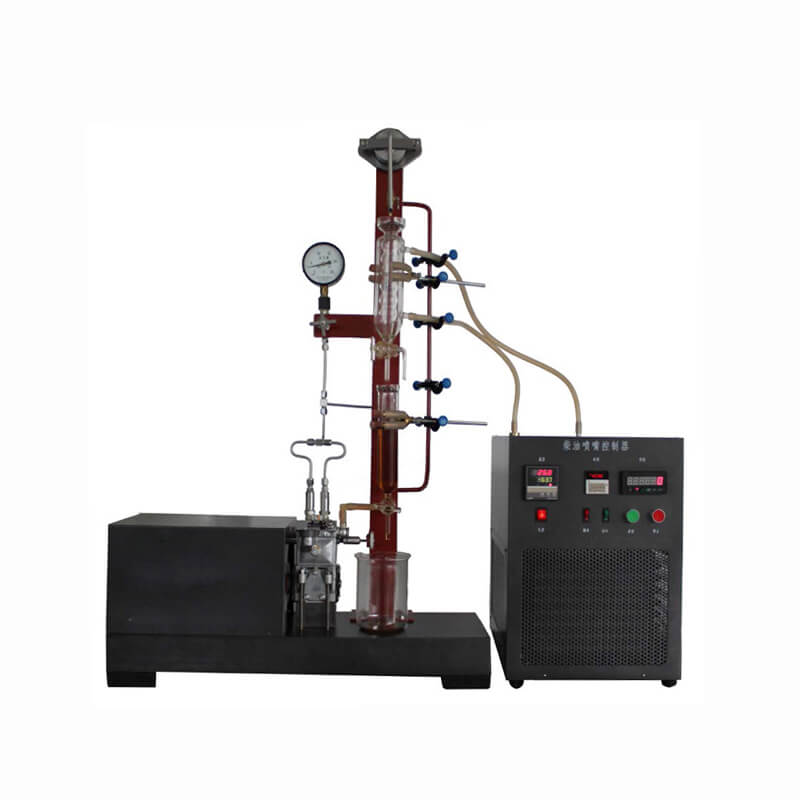

Shear Stability Tester

Adopts Germany Bosch dual piston jet pump and atomizing chamber with nozzle & nozzle holder. It is suitable for evaluation of the shear stability of polymer-containing fluids by measuring the percent viscosity loss at 100℃ of polymer-containing fluids. The viscosity loss reflects polymer degradation due to shear at the nozzle.

Product Model: R-SY-0103
Design Standard: ASTM D6278
GET A QUOTE

Application:

Shear Stability Tester for Polymer Containing Fluids  (European Diesel Injector Method) adopts Germany Bosch dual piston jet pump and atomizing chamber with nozzle & nozzle holder. It is suitable for evaluation of the shear stability of polymer-containing fluids by measuring the percent viscosity loss at 100℃ of polymer-containing fluids. The viscosity loss reflects polymer degradation due to shear at the nozzle.



Test Standard:

ASTM D6278



Specification:

Jet pump

Germany Bosch

Timing

Electric digital timer

Counting

Automatic stroke counter

Cooling

Denmark imported compressor

Oil temperature

30~35℃

Recycle mode

Electric circulating pump

Flow rate control

Oil valve

Pressure control

Pressure gauge (17.5Mpa±0.35Mpa)

Temperature sensor

PT100

Power

3-PH, 380V, 50Hz



Features:

1. It adopts Germany Bosch jet pump, nozzle and atomizing chamber.

2. Axial nozzle injector and nozzle holder with cartridge filter.

3. Automated cooling circulating system, which can keep the oil temperature stable in the range of 30~35℃.

4. Automatic stroke counter can cut off power automatically.

5. Fluid bath with volume 250cm3  and input port on the top.

6. Motor: 3 phase, 1100W, rotated speed: 925±25r/min.

7. Temperature control: Digital controller.

8. Bosch jet pump top is equipped with air exhausting device.
