Particle Filtration Efficiency Tester ASTM F2299

Application:

Particle Filtration Efficiency Tester determines the initial efficiency of materials used in medical face masks to penetration by particulates using Latex Spheres.

ASTM F2299 PFE Tester measures the particle counting in size range 0.3 to 1.0μm, with airflow velocity 0.5 to 25cm/s.



Test Standard:

ASTM F2299, ASTM F2100



Test Principle & Method:

The aerosol generator of PFE Tester generates aerosol particles (latex sphere) with a certain concentration and size distribution, and passes through the tested sample at a specified gas flow rate, to test the concentration of particulates before and after test sample.

The percentage of particle concentration reduction is used to evaluate the filtration efficiency of the tested sample against particles.



Features:

Particle Filtration Efficiency Tester precisely controls humidity, airflow and aerosol concentration by adopting the following parts.

1, High-efficiency aerosol generator

2, High-precision multi-channel aerosol particle counter

3, Precision differential pressure sensor

4, Precision flow meter, humidifier, temperature and humidity sensor, etc.



Specification:

Filtration efficiency range	0~99.999%
Flowmeter range	0~100 L/min, accuracy ±2%, resolution 0.1L/min
Pressure test range	0~1,000Pa, accuracy 1%, resolution 0.1Pa
Concentration test range	107~108 m3
Aerosol particle size range	0.3~1.0μm
Airflow test velocity	0.5~25cm/s
Testing area	100cm²
Aerosol	Latex sphere
Specimen clamp	Pneumatic clamp with protection device
Operation system	PLC touch screen controller, with thermal printer to output test data
Power supply	1-phase, AC220V, 50Hz, 1000W
Air supply	0.6Mpa @ 550kPa
Machine size	900W*850D*1600Hmm
Weight	150kg
Accessory	Specimen clamp x 1 set Latex sphere aerosol generator x 1 set HEPA Filter x 1 set Clean, dry compressed air supply x 1 set Humidifier x 1 set Charge neutralizer x 1 set Multiple channel Latex sphere particle counter x 1 set

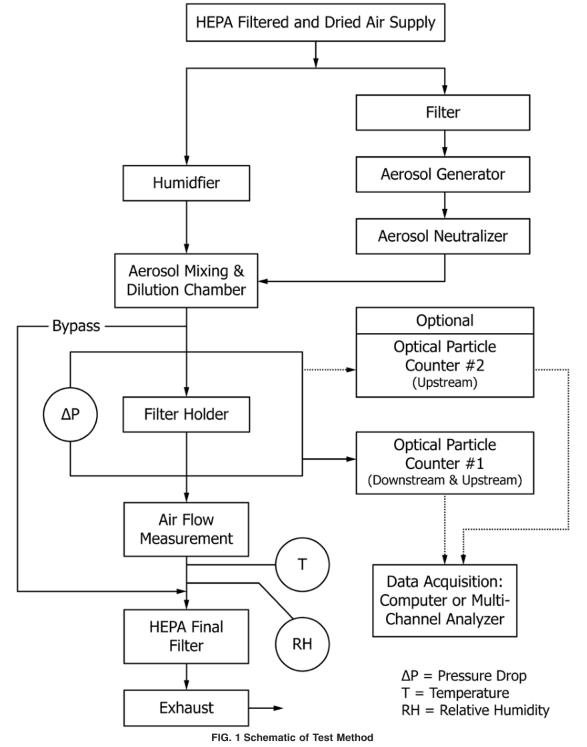

Schematic of Test Method:
