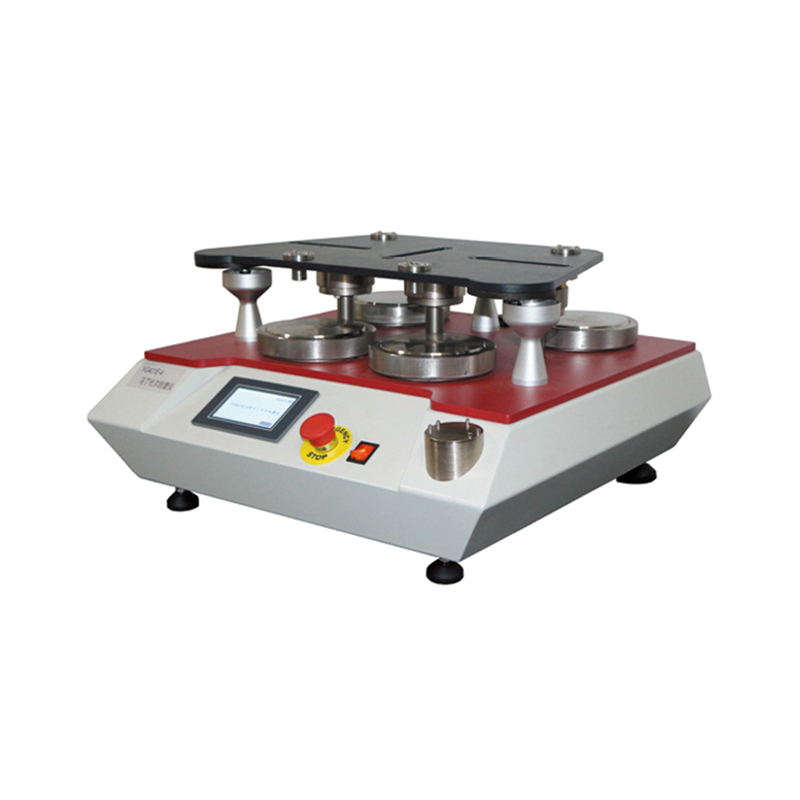

Martindale Abrasion Tester - 4/9 Station
Determine the resistance to fabric surface changes of pills and abrasion by Martindale Tester. It applies to all types of fabrics, especially for woven fabrics and knitted fabrics.
| Product Model: | YG401E |
|---|---|
| Design Standard: | ISO 12945-2, ISO 12947, ASTM D4966, ASTM D4970, JIS L1096, IWS TM 196 / TM 112 |
Application:
Martindale Abrasion Tester determine the resistance to fabric surface changes of pills and abrasion. It applies to all types of fabrics, especially for woven fabrics and knitted fabrics.
Test Method:
Martindale Abrasion Tester simulates pilling, fuzzing and other surface changes of fabrics which occurs in normal wear.

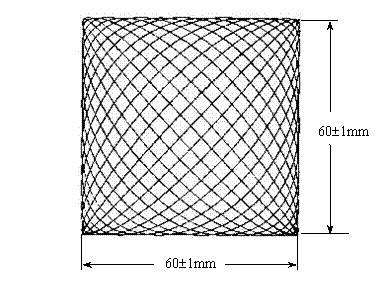

Mount a circular test specimen on specimen holder of Martindale Tester with a certain load, and rub the specimen surface against the face of a same mounted fabric in Lissajous figure, under a specific number of rotation movement.
The degree of fabric fuzzing and pilling produced by the testing of Martindale Abrasion Tester is evaluated by comparison of tested specimen with standard fabrics.
Test Standard:
ISO 12945-2, ISO 12947, ASTM D4966, ASTM D4970, JIS L1096, IWS TM 196 / TM 112
Technical Parameters:

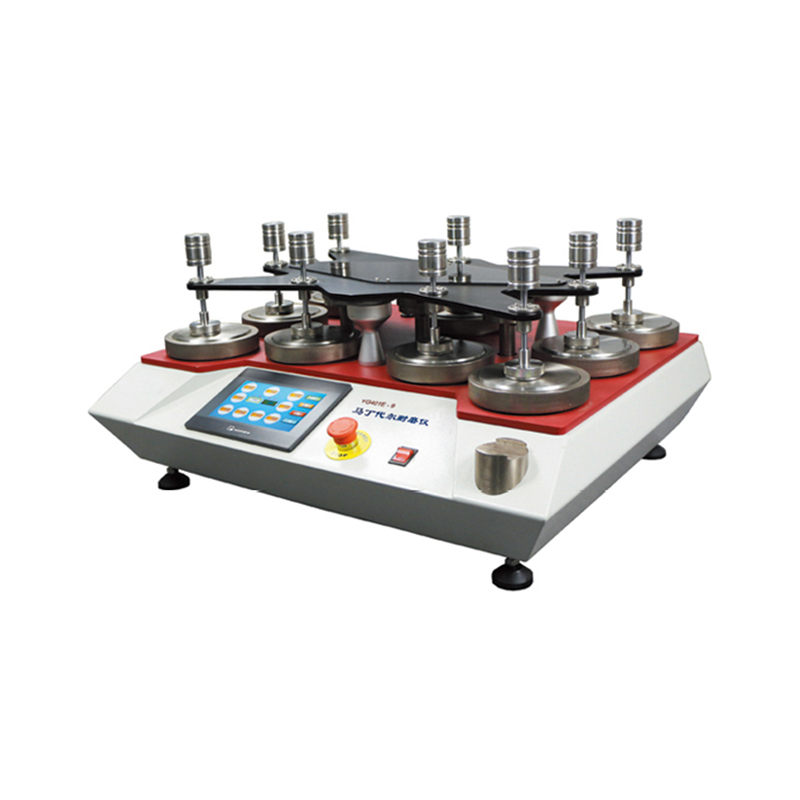

| Test station | 4 stations / 6 stations / 9 stations for selection |
| Counting range | 0~999,999 times |
| Stroke | Longitudinal 24±0.5mm, transverse 60.5±0.5mm |
| Mass of pressurized matter | 1. Gripper: 198±2g 2. Material hammer of clothing material: 395±2g 3. Hammer for furniture decoration sample: 594±2g 4. B type clamp holder: 155±1g 5. Stainless steel sphenoid: 260±1g |
| Effective friction diameter of grinding block | A Type: 198g (1.96N), Friction head D28.65±0.05mm B Type: 155g (1.52N), Friction head D90±0.1mm |
| Relative motion speed of gripper & grinding platform | 20-70r/min, adjustable |
| Mass of sample pressure hammer | 2385±10g |
| Power | AC 220V, 50HZ, 100W (can be appointed) |
