Lubricating Oil Lab Instruments Exported-HOT SALE

Thanks for our good partner in UAE choosing two sets hot sale Lubricating Oil Lab Instruments including Automatic Evaporation Loss Tester (Novak Method) and Foaming Characteristics Tester. We supported them with timely lead time and detailed English manual and operation videos for customer site installation and training.

Here we would like to share more details about the lab instruments to help companies in oil industry for reference:

1) Automatic Lubricating Oils Evaporation Loss Tester (Novak Method)

Application:

This machine can be used for the determination of the evaporation loss of lubricating oils by put 65g sample into evaporator at 250C ±0.5C for 60mins to make volatile oil vapors out with air by vacuum pump.

Design standard:

ASTM D5800

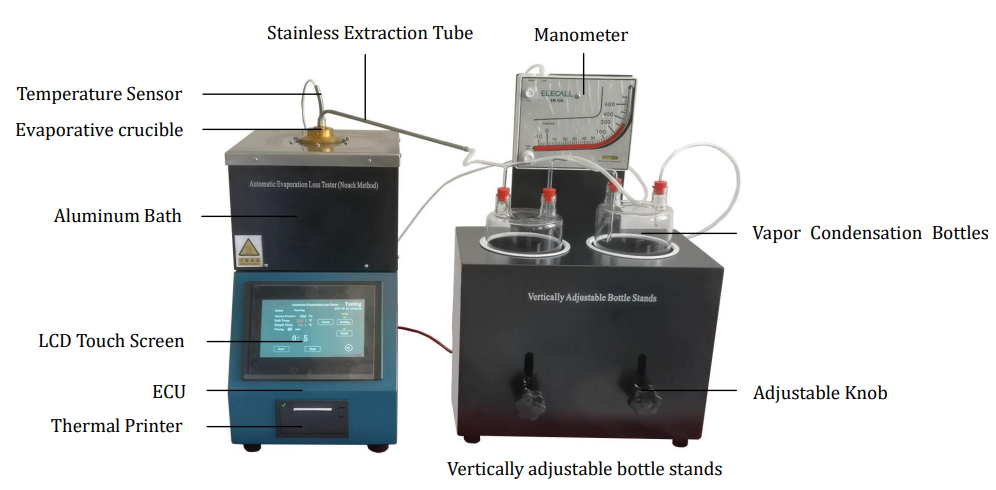

Instrument picture:

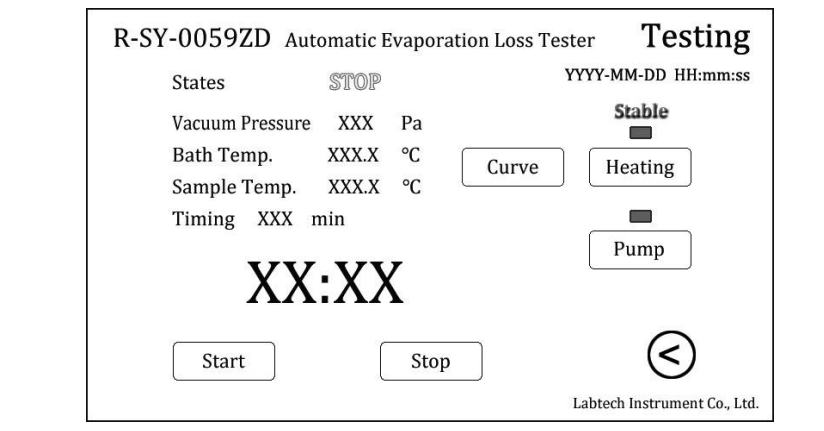

Software picture:

2) Lubricating Oils Foaming Characteristics Tester

Application:

This machine is suitable for the determination of the foaming characteristics of lubricating oils at 24℃ and 93.5℃. Means of the empirically rating the foaming tendency and the stability of the foam are described.

The tendency of oils to form can be a serious problem in systems such as high-speed gearing, high-volume pumping, and splash lubrication. Inadequate lubrication, cavitation, and overflow loss of lubricant can lead to mechanical failure. This instrument is used in the evaluation of oils for such conditions.

Design standard:

ISO 6247, ASTM D892

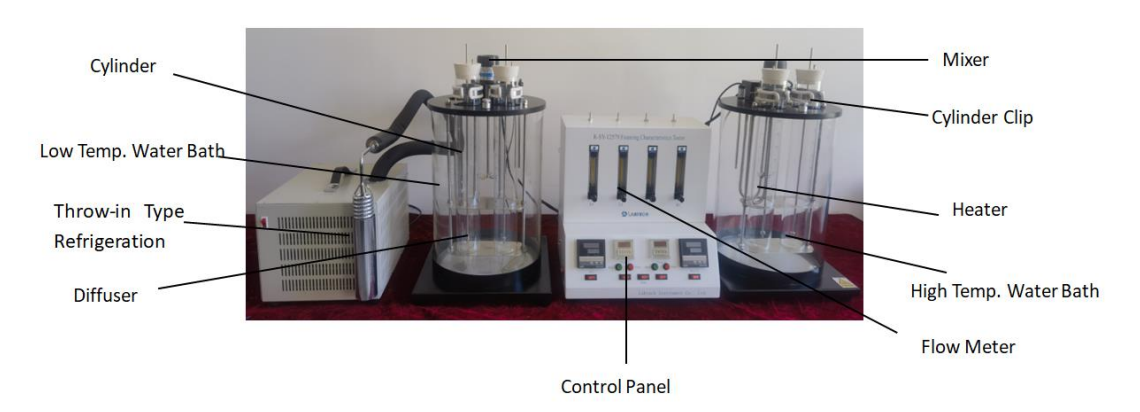

Instrument picture:
