IPX2 Test Probe
Verify the basic protection against access to hazardous parts, and verify the protection against access with a finger.
| Product Model: | R-FC-2 |
|---|---|
| Design Standard: | IEC 60529, IEC 61032, IEC950, IEC60884, IEC60335, UL507, UL1278 |
Application:
Verify the basic protection against access to hazardous parts, and verify the protection against access with a finger.
Test Standard:
IEC 60529, IEC 61032, IEC950, IEC60884, IEC60335, UL507, UL1278
Specification:
|
Jointed finger diameter |
12mm |
|
Jointed finger length |
80mm |
|
Stop face |
φ50x20mm |

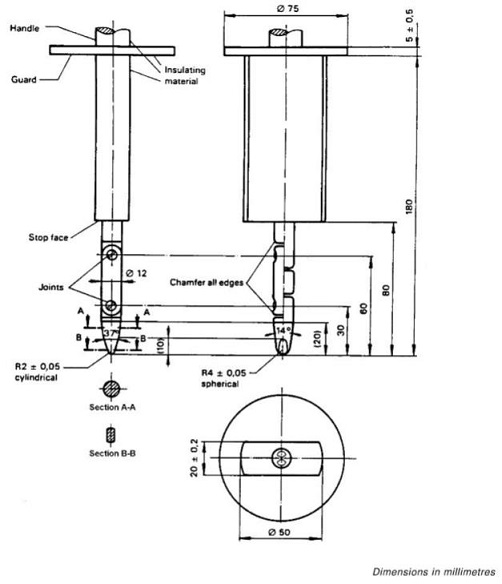

Figure:
