ICI Pilling & Snagging Tester - 4 Station
Determine the surface change and resistance to pilling of textile fabrics.
| Product Model: | YG511-4 |
|---|---|
| Design Standard: | ISO 12945-1, BS 5811, JIS L1076, IWS TM152 |
Application:
ICI Pilling & Snagging Tester determines the resistance to pilling and surface change of textile fabrics.
Principle:
Mount test specimens on polyurethane tubes of ICI Pilling & Snagging Tester, then randomly tumbled in a cork-lined box at constant speed. Visual access the fuzzing and pilling of test specimen after a specific cycles of tumbling.
State in test report if the test specimen haa any special treatment, such as washing and cleaning.
Test Standard:
ISO 12945-1, BS 5811, JIS L1076, IWS TM152
Specification:
|
Test stations |
4 boxes |
|
Inner size |
235 x 235 x 235mm (include cork liner) |
|
Rotating speed of box |
40~80r/min, adjustable |
|
Counter |
2~99,999 times |
|
Sample holder tube |
D31.5 x 140mm, weight 52.25g |
|
Sample size |
125*125mm |
|
Power |
AC 220V, 50HZ, 120W (can be appointed) |
|
Machine size |
820W*420D*850Hmm |

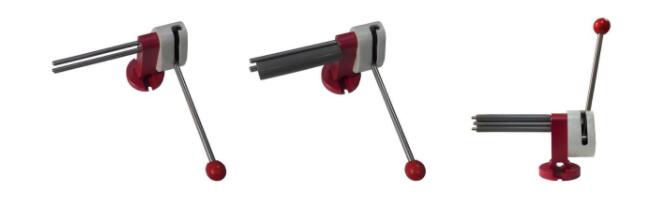

Sample maker of Snagging Tester is optional.
