Heel Impact Tester

LABTECH is a high-tech enterprise in China recognized by the Ministry of Science and Technology, focusing on the research and development of simulation environmental test chamber and lab instruments for more than 20 years.

Heel Impact Tester

Determine the impact strength of shoe heels, the result provides an assessment of the liability to failure under the occasional heavy blows received during wear.

Product Model: R-F634
Design Standard: BS 5131, SATRA TM20, ISO 19953
GET A QUOTE

Application:

Heel Impact Tester determines the impact strength of shoe heels, the result provides an assessment of the liability to failure under the occasional heavy blows received during wear.



Test Principle:

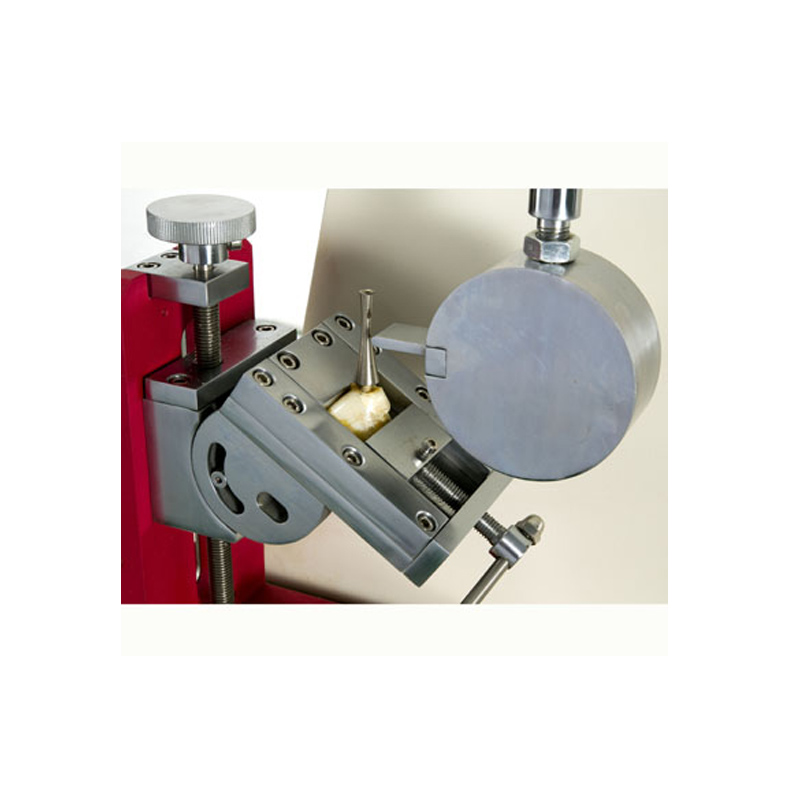

A heel, clamped with the tip uppermost and the stem approximately vertical, is subjected repeatedly to measured blows from a pendulum striker, the energy of the blows increasing successively until the heel fails.



Test Standard:

BS 5131, SATRA TM20, ISO 19953



Specification:

Capacity

0~18.3J, minimum reading 0.68J

Swing arm

Diameter 25±0.5mm

Center distance 432±2mm

Hammer energy

17.3±0.2N-m

Impact head

L: 35±2mm

W: 25±0.5mm

D: 6±0.5mm

Specimen holder range

H: 25mm, angle: 0~45°

Machine size

630*400*1050mm

Weight

100kg
