Heel Fatigue Tester

LABTECH is a high-tech enterprise in China recognized by the Ministry of Science and Technology, focusing on the research and development of simulation environmental test chamber and lab instruments for more than 20 years.

Heel Fatigue Tester

Determine the ability of heels of ladies’ shoes to withstand the repeated small impacts imposed by normal walking.

Product Model: R-F634
Design Standard: SATRA TM21, ISO 19956
GET A QUOTE

Application:

Heel Fatigue Tester determines the ability of heels of ladies’ shoes to withstand the repeated small impacts imposed by normal walking.

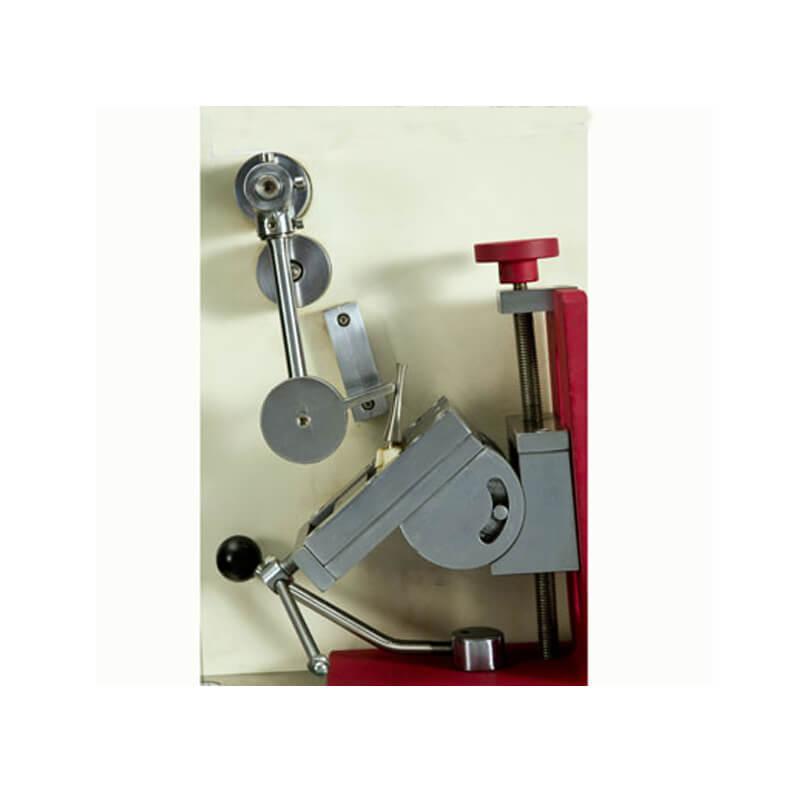

Heel Fatigue Tester, incorporating a motor-driven pendulum which can deliver blows to a test specimen assembly, each blow having an energy of 0.68J, at the rate of one blow per second. The equipment is clamped either on to a solid built-in bench, or on to a rigid free-standing frame anchored to the floor.



Test Method:

A heel is subjected to blows, each of specified energy, delivered by a pendulum once a second. Testing continues until failure of the heel takes place, or until satisfactory fatigue resistance is obvious.



Test Standard:

SATRA TM21, ISO 19956



Specification:

Impact energy

0.68J

Impact frequency

60times/min

Swing arm

Diameter 12.5±1mm

Center distance 152±2mm

Pendulum

Diameter: 57±1mm

Thickness: 20±1mm

Specimen holder range

Vertical: 90mm

Horizontal: 80mm

Angle: 0~180°

Power source

1-phase, AC220V, 50Hz

Machine size

500*450*500mm

Weight

70kg
