Hand-in Environmental Chamber

Hand-in Environmental Chamber simulates constant temperature and humidity environment for product testing, pre-conditioning and long time storage. It's applicable for all kinds of electronic components and materials in high temperature, low temperature or damp heat environment. When you open the external insulated door, the inner glass door allows full-view of the work space. It can be equipped with a wiper for the chamber with humidity function. There are two glove ports (Hand-in ports) that enable you to reach into a rubber seal and operate the specimen under testing.

Product Model: RS-TH series
Design Standard: ISO16750; JESD22; IEC60068-2-30; IEC60068-2-78; IEC60068-2-66; IEC60068-2-38

Application:
Hand-in Environmental Chamber simulates high temperature, low temperature or damp heat environment for product reliability and performance test. The chamber is applicable for electronic product, electrical product, PCBs, photovoltaic modules, textiles and packages.

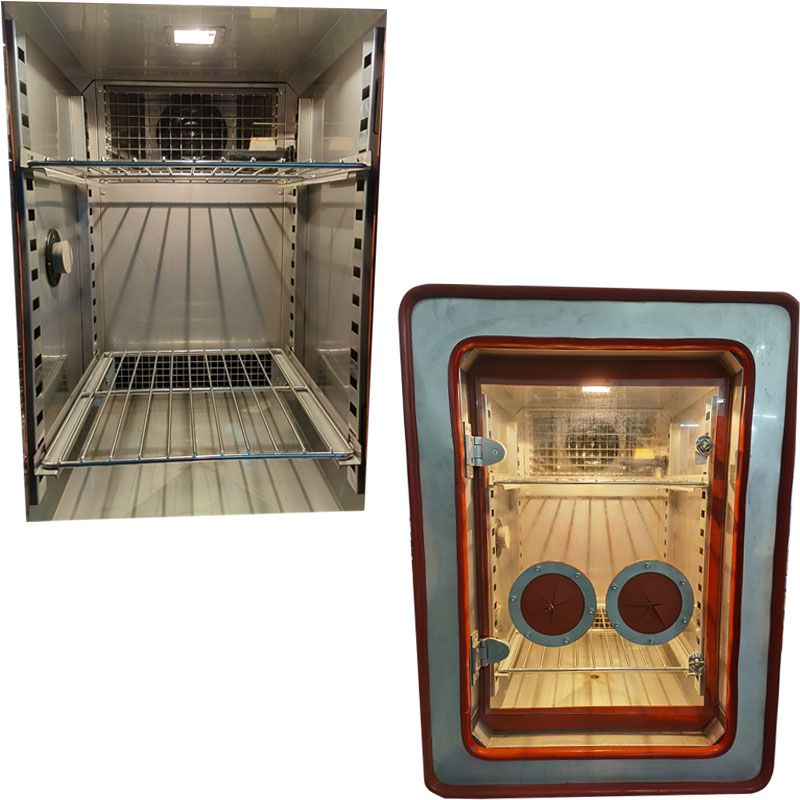

When you open the external insulated door, the inner glass door allows full-view of the work space . It can be equipped with a wiper for the chamber with humidity function. There are two glove ports (Hand-in ports) that enable you to reach into a rubber seal and operate the specimen under testing.

Labtech can provide a wide selection for Environmental Test Chambers to perform temperature humidity test. Lowest temperature can be down to – 70℃ and highest temperature can be up to 200℃. Humidity range can be chosen from 5% to 98%. Size range of environmental chambers also can be customized as per customer requirements from small one to test small parts, which can save room and cost and to large size of walk-in environmental chamber for testing motorbike, automobile or test many items at the same time like computer, screens.



Test Standard:

IEC 60068-2

Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic (12 h + 12 h cycle)

Environmental testing - Part 2-38: Tests - Test Z/AD: Composite temperature/humidity cyclic test

Environmental testing - Part 2-78: Tests - Test Cab: Damp heat, steady state

ISO 16750-1

Road vehicles — Environmental conditions and testing for electrical and electronic equipment

JESD22

A100 – Cycled Temperature Humidity Bias Life Test

A101 – Steady-State Temperature-Humidity Bias Life Test

A103 – High Temperature Storage life

A104 – Temperature Cycling

A110 – Highly Accelerated Temperature and Humidity Stress Test

A119 – Low Temperature Storage Life


Specifications:

Model

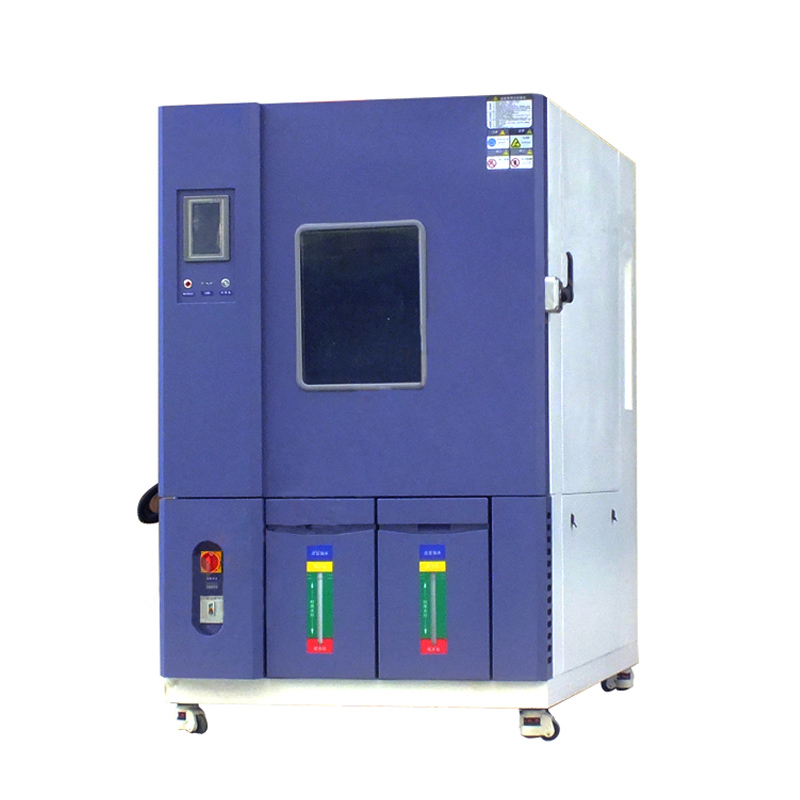

RS-TH series Hand-in Environmental Chamber

Inner capacity

64L, 100L, 225L, 408L, 800L, 1000L (can be customized)

Temperature range

-70C ~ +200C (can be customized)

Humidity range

5% ~ 98%RH (can be customized)

Temperature rate

3C/min – 20C/min ( can be customized)

Temp & Humi.  Fluctuation

≤ ± 0.5C; ≤ ± 2%RH

Temp & Humi. Deviation

≤ ± 2C; ≤ ± 3%RH

Temp & Humi. Uniformity

≤ ± 2C;

≤ ± 3% for humidity ≥ 75%RH, ≤ ± 5% for humidity < 75%RH

Cooling mode

Air-cooled or water-cooled

Heat load

Heating of sample less than 300W ( can be customized)

Inner material

SUS# 304 stainless steel

Controller

Can be customized

Features

1.Innovative technology: independent research and development control system (soft write the word "3642019"), with refrigeration PID control to tell the processing ability, control small cooling capacity, save power consumption;

2.Optional: air cooled or water cooled refrigeration system and temperature control range of high temperature side can be configured;

3.Customized on demand: you can choose the combination of door, observation window and operation hole according to the use conditions, and customize the size and temperature range as required;

4.High mute: up to 65dB mechanism mute standard;

5.High intelligence: support computer connection, use USB data, curve export to save.
