Fastener Fatigue Tester

LABTECH is a high-tech enterprise in China recognized by the Ministry of Science and Technology, focusing on the research and development of simulation environmental test chamber and lab instruments for more than 20 years.

Fastener Fatigue Tester

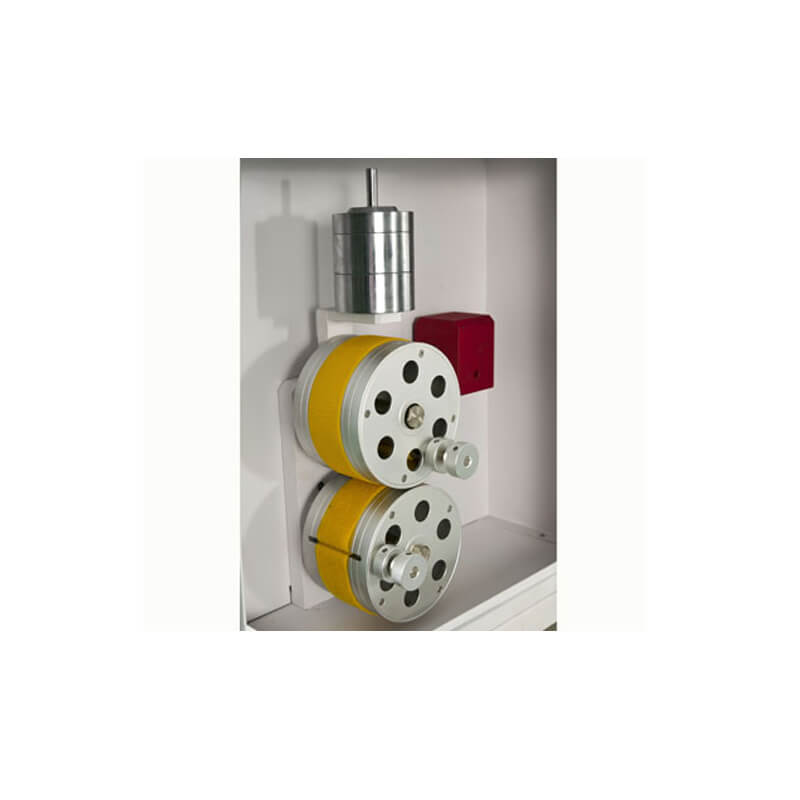

Fastener Fatigue Tester is used to peels and attache the hook & loop fastener repeatedly.

Product Model: R-F639
Design Standard: ISO 22777, ISO 22776, DIN 3425, SATRA TM123
GET A QUOTE

Application:

Fastener Fatigue Tester is used to peels and attache the hook & loop fastener repeatedly.



Principle:

A touch and close fastener is opened and closed a standard number of times repeatedly by Fastener Fatigue Tester. The test specimen is cut into 75*20mm.

It needs to be equipped with a tensile testing machine to measure its adhensibe force AS and bonding strength PA.



Test Standard:

ISO 22777, ISO 22776, DIN 3425, SATRA TM123



Specification:

Large idling drum diameter

162.5±0.5mm

Small idling drum diameter

160±0.5mm

Drum width

80mm

Drum rotation speed

60±5cpm

Controller

PLC controller, touch screen

Power source

1-phase, AC220V, 50Hz

Machine size

450*550*570mm

Weight

55kg
