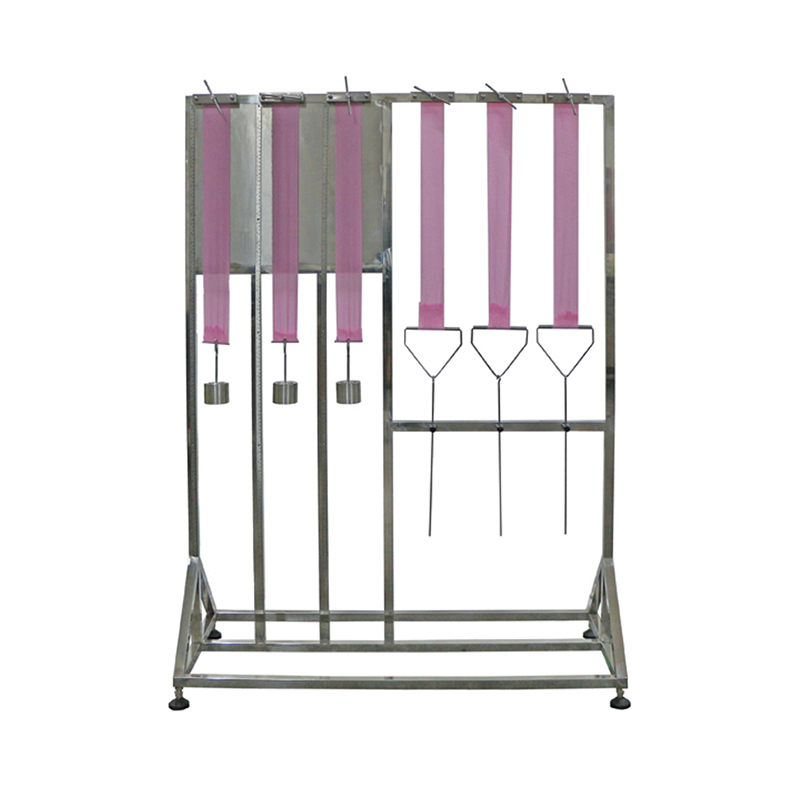

Fabric Stretch Tester - ASTM D3107

Determine the amount of fabric stretch, fabric growth, and fabric recovery of fabrics woven in whole or in part from stretch yarns after a specified tension and extension.

Product Model: R-TX026B
Design Standard: ASTM D3107

Application:

Fabric Elastic Tester determines the amount of fabric stretch, fabric growth, and fabric recovery of fabrics woven in whole or in part from stretch yarns after a specified tension and extension.

It’s applicable for woven fabrics exhibiting high stretch (greater than 12 percent) and good recovery properties from low tension (up to 360g/cm or 1lb/in. of fabric width).



Test Method:

Fabric Stretch Under a Specified Tension: Bench marks of a known distance are made on a fabric specimen. A specified tension is applied to a fabric specimen by a prescribed cycling technique and the resulting distance between the bench marks measured. The fabric stretch is calculated from the length difference between the bench marks prior to application of the tension and under while under the tension.



Test Standard:

ASTM D3107



Technical Parameter:

Fixed load test station

3 stations

Fixed elongation test station

3 stations

Test fixture width

140mm

Weights

1.35kg x 3pcs, 1.8kg x 3pcs

Machine size

900W*300D*1500Hmm

Weight

40kg
