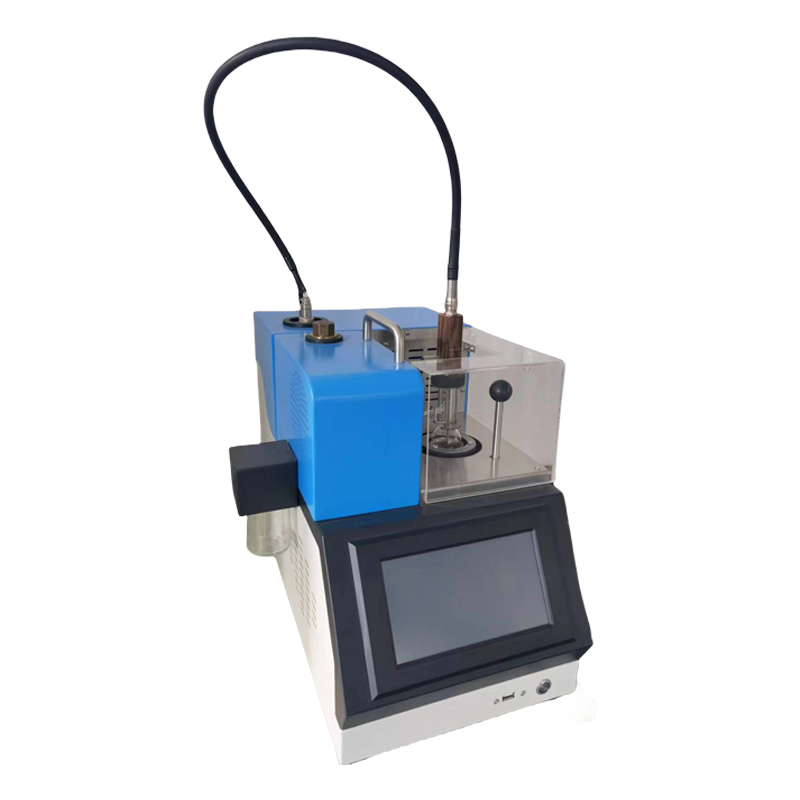

Automated Distillation Tester (Micro Distillation Method)

Application:

Determine the distillation characteristic of petroleum products and liquid fuels having boiling range between 20℃ to 400℃ at atmospheric pressure by using micro distillation method.

R-SY-7345ZD Portable Automated Distillation Tester is consistent with the results of ASTM D86, ISO3405, IP123 and other test methods, and has good repeatability. It takes only 10ml sample and 10mins to complete a distillation test, and the whole process takes only a short time from preparation, testing to cleaning, which greatly improves the efficiency of laboratory work.

The temperature range of distillation can be from 10℃ to 400℃ at atmospheric pressure, the compact instrument is convenient for operation and carry, and small sample volume availability.

Test criteria:

ASTM D7345, IP 596

Features:

1, 7.0-inch TFT color LCD display, screen resolution: 800x480;

2, Touch screen operation, interface language: Chinese and English;

3, Built-in pressure sensor, automatic result correction;

4, Automatically display and store test results, and can be traceable;

5, Compact design and easy to operate, real physical distillation;

6, The test results are consistent with ASTM D86 and have good repeatability;

7, The complete distillation test takes only 10ml of sample and 10min;

8, Built-in semiconductor refrigeration, condensing tube temperature can be set freely;

9, Built-in pressure and temperature correction program and self-check program;

10, Built-in alarm and security measures.
